Power quality optimized for mission-critical airport operations.
Project Overview
At King Khalid International Airport (KKIA) in Riyadh, IPU SA was contracted to deliver a harmonic filtering solution to address significant electrical distortion issues caused by nonlinear loads. The airport was experiencing high third harmonic currents and overheating in the neutral conductors — posing a risk to critical systems. IPU SA deployed a Schneider Electric Active Harmonic Filter (AHF), fully tested and commissioned to meet IEEE 519 compliance standards.
Clients & Partners
-
Client: MERAS International Investment
-
Location: Riyadh, Saudi Arabia
-
Completion: 2024
-
Technology Partner: Schneider Electric
Products & Solutions Provided
-
Active Harmonic Filter (AHF) – Schneider Electric
-
On-site power quality analysis
-
Load monitoring and harmonic profile reporting
-
Installation, configuration, and commissioning of AHF
-
Compliance audit with IEEE 519 standard
Technical Highlights
|
Component |
Description |
|---|---|
|
Filter Type |
Active Harmonic Filter (Schneider Electric) |
|
Target Harmonic |
3rd Harmonic – Neutral line distortion |
|
Analysis |
In-house PQ audit, THD analysis, waveform diagnostics |
|
Regulatory Standard |
IEEE 519-compliant post-installation |
|
Thermal Risk |
Resolved overheating of neutral conductor |
Challenges & IPU SA Solutions
|
Challenge |
IPU SA Solution |
|---|---|
|
Excessive third harmonic current in critical circuits |
Conducted detailed PQ analysis to determine source |
|
Neutral overheating due to harmonic overload |
Specified AHF with tailored filtering profile |
|
Regulatory risk & safety exposure |
Reduced TDD to acceptable levels under IEEE 519 |
Key Outcome
-
Third harmonic distortion eliminated from targeted circuits
-
Neutral overheating resolved without rewiring
-
Increased system reliability for sensitive equipment
-
Regulatory compliance and safety risks mitigated
-
Delivered with minimal operational disruption

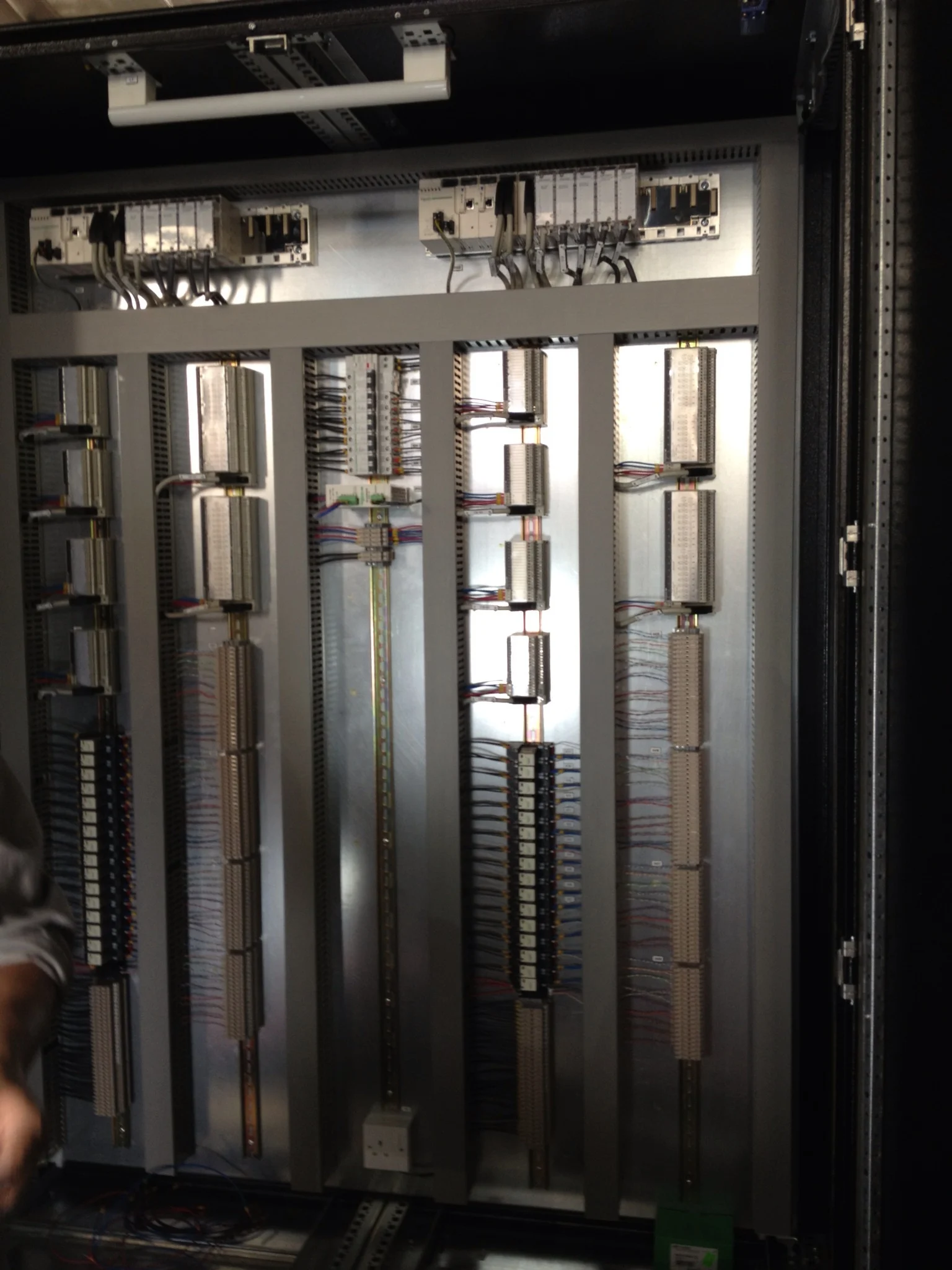

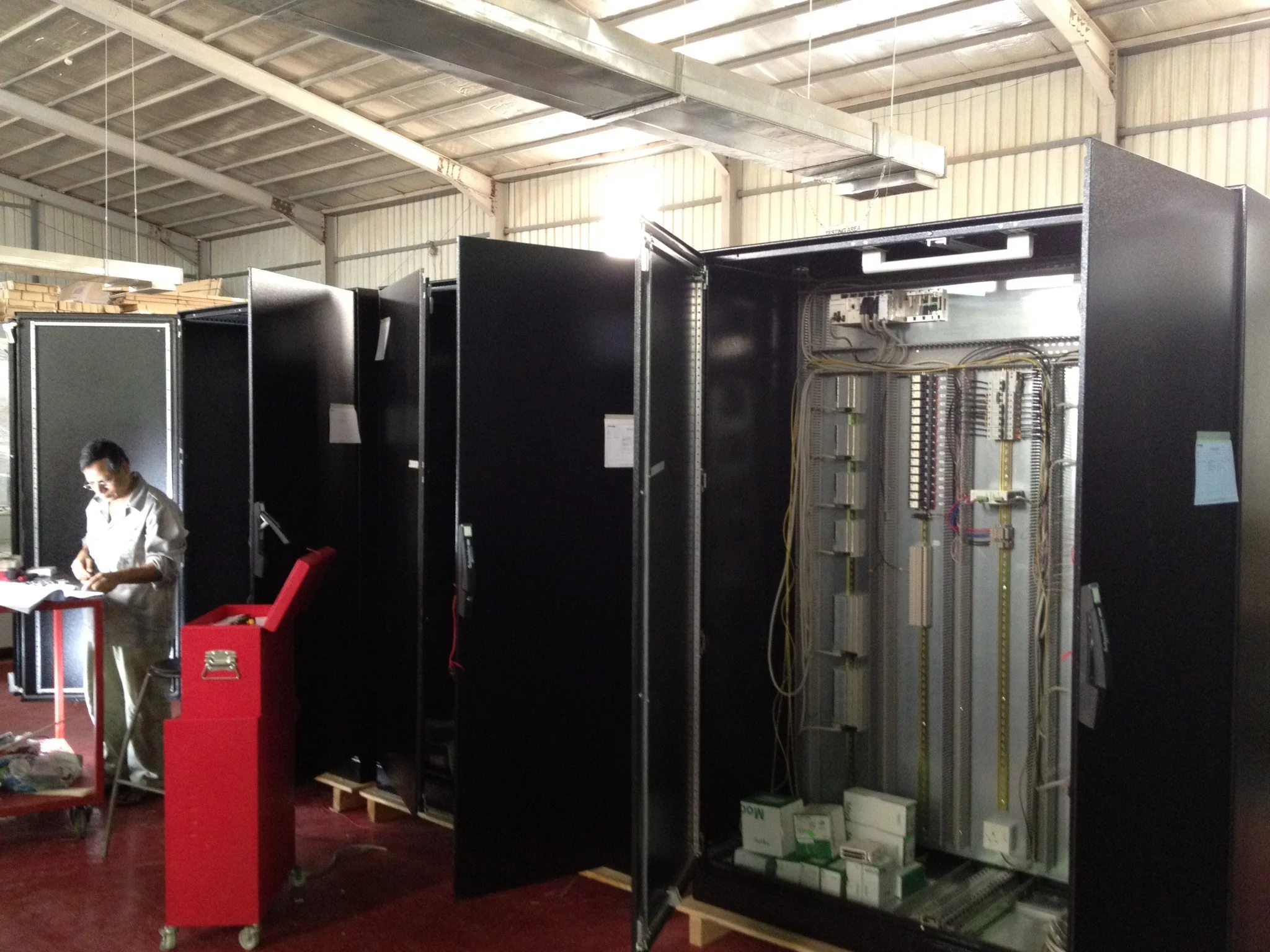

Project Media
